Kitchen window (Top Light) - H 30cm x 175cm.

Top Light 2

Top Light 2

Kitchen window (Top Light) - H 30cm x 200cm.

1. The Cartoon (Black Line Drawing).

1. The Cartoon (Black Line Drawing).

The design of the window is drawn out 1:1 (Actual size). The glass pieces are cut on this drawing.

2. Construct Framework

2. Construct Framework

For this window, a secure frame is needed to house each panel of glass.

3. Frame And Cartoons In Place.

3. Frame And Cartoons In Place.

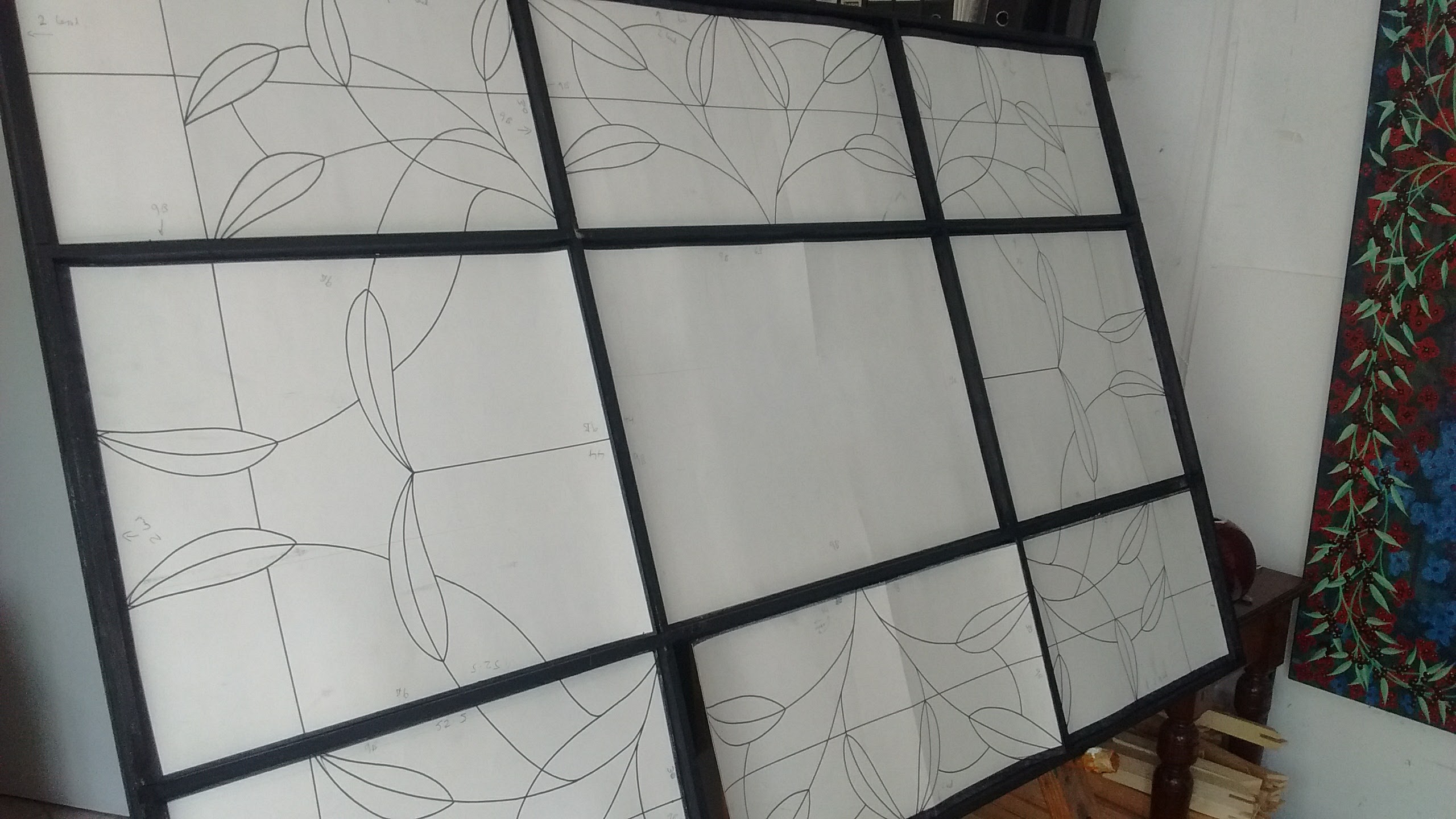

Once drawn up, the cartoons (black line drawings) are placed in position to make sure each completed panel will fit in correctly.

4. Cut Glass To Fit Cartoon

4. Cut Glass To Fit Cartoon

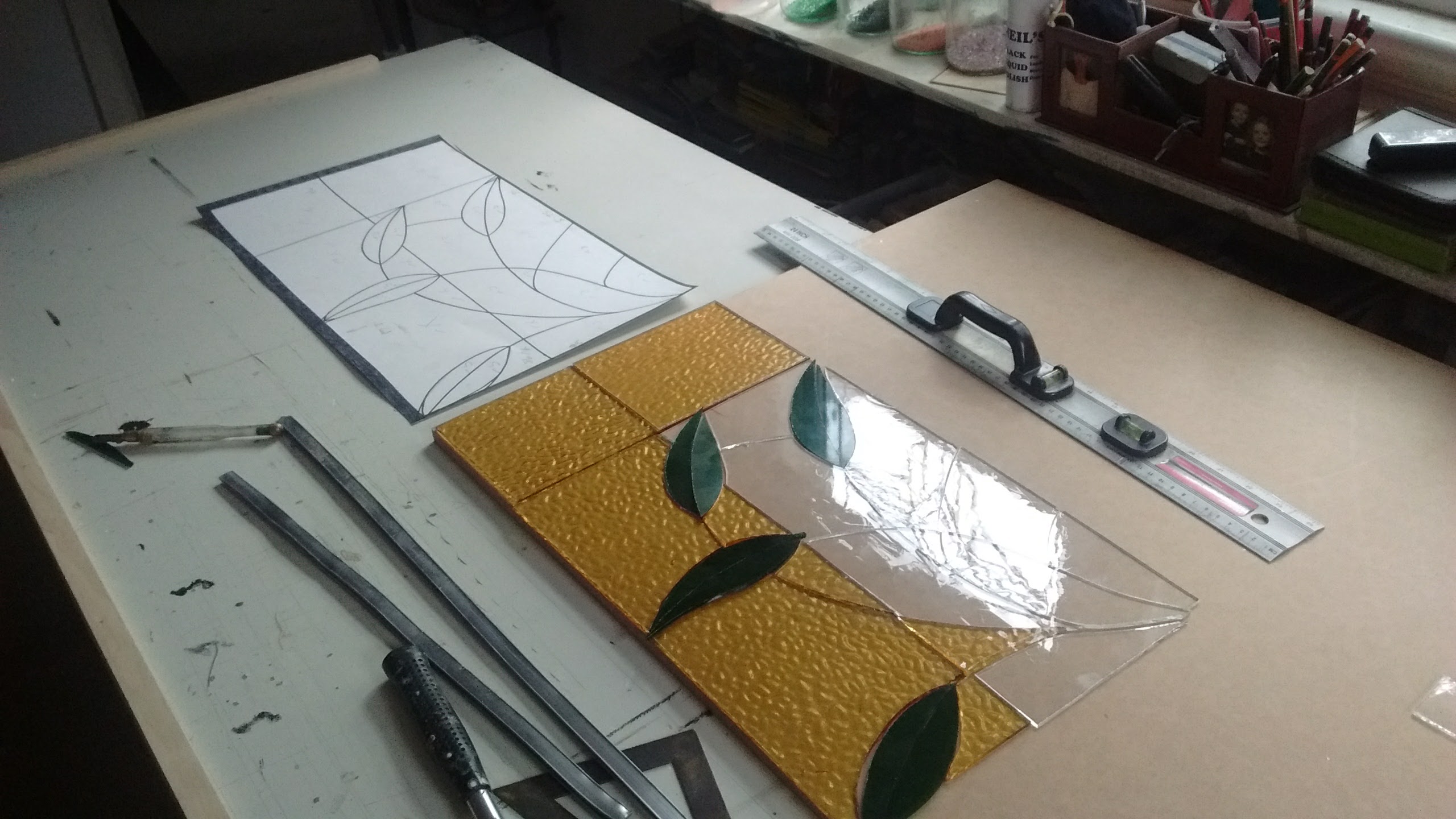

Each piece of coloured glass is cut and numbered to fir the cartoon (Drawing).

5. Complete Cutting Of All Panels.

5. Complete Cutting Of All Panels.

Cut and number all panels in sequence before leading glass pieces together.

6. Complete Cutting Of All Panels.

6. Complete Cutting Of All Panels.

Cut and number all panels in sequence before leading glass pieces together.

7. Lead and Glass Fabrication

7. Lead and Glass Fabrication

Lead all panels with lead came - in this case two sizes of lead were used to make the leadlight panel.

8. Place Completed Panels In Frame

8. Place Completed Panels In Frame

Make sure all panels fit securely in place - The glass panels are now ready for sealing with leadlight putty.

9. Window Installed

9. Window Installed

The window is installed into the framework. Central Logo '175' design by Mark Sammartino Creative Director & Designer.
